The 500 watt models are ideal for small bathrooms, hallways or closets.  For all other rooms, the 1000 watt models are more appropriate and efficient.  Please refer to the PDF above to calculate how many you will need for your particular area.

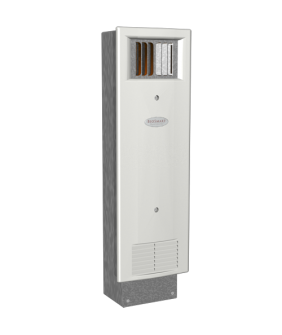

500 Watt Heater Specifications

Model BIO-500F/220v

• Cabinet: All Metal –22 & 24 gauge
• Weight: 8.0 lbs
• Dimensions: 18” x 4 3/8” x 4” (H,W,D)
• Power Requirements: 220 Volt AC — 500 Watt
• Power Supply: Requires isolated 12 gauge wire to fuse panel
• Chassis Safety Insulation: Exceeds all government and independent laboratory standards for safety in an installed heating appliance (a safety standard that exceeds other manufacturer’s specifications).
• Internal Ceramic Blanket: Provides R45 insulation between the wall and the heater. The heater cabinet installed in the wall remains cool to the touch while delivering warm (160° F) infrared heat into the room.
• Life Expectancy: 25 years+
• Thermostat Power Requirement: None - the unit contains its own low voltage power supply for thermostat operation
• Thermostat Type: Any 12-24 volt low-voltage thermostat (not supplied)
• Zoned Heat Capability: Pre-wired - simple two-wire contact to any zone control panel—can also accept multiple parallel hook-ups to a single low-voltage thermostat
• Safety Cut-Off: Yes
• Listed Approvals: CTUV-US & International (UL Equivalent)
• Installation: Any wall with a minimum 3 ½ inches of depth
• Heat Type: Therapeutic far infrared heat
• Heat Chamber: Copper lined for maximum ion transfer
• Heating Elements: One (1) ceramic infrared emitter 500 watt
• Ceramic Life Expectancy: Rated at 40,000 hours
• Heat Output: 2,800 BTU infrared heat
• Fan System: One (1) high volume, low noise 90mm DC fan
• Frequency Hum: There is no AC 60Hz frequency hum as with other in-wall systems
• Fan Noise Level: 18 dB—practically silent
• Warranty: 5-Years - ceramic emitters. 3-Years - Parts & Labor.

See your Owner's Manual for specific installation instructions.

Make sure to take out all foam packing from inside and around heating elements and heater.

Be sure to double check wiring instructions as the color coded wires may not necessarily match conventional color codes.

Five Year Warranty

BioSmart Technologies (BT) warrants this product, to the original purchaser or gift recipient, to be free from defects in workmanship and materials under normal use and service, for a period of three years from the date of purchase. EWT further warrants the infrared heating elements, to the original purchaser or gift recipient, for a period of five years from the date of purchase.

Five Year Infrared Element Warranty: BT shall warrant the infrared elements in the heater to be free from defects in workmanship and materials under normal use and service, and shall supply at no cost to the original purchaser replacement elements as required to maintain product in good working order.

Shipping: BT shall bear the cost of return shipping and repair, or replacement if, during the first 90 days, there is a defect in workmanship or materials. Thereafter, customer shall bear the cost of return shipping and BT shall repair or replace any defective part including all labor for a period of one full year from the date of purchase.

Limitations

ALL WARRANTIES IMPLIED BY LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF THE WARRANTY SET FORTH ABOVE.

Some jurisdictions do not allow limitations on the length of the implied warranty, so the above limitation may not apply to you.

IN NO EVENT SHALL BT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, OR MEDICAL EXPENSES CAUSED BY ANY DEFECT, FAILURE, MISUSE, OR MALFUNCTION OF THE PRODUCT.

Some jurisdictions do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

The Company will not be responsible for the damages or losses, direct or indirect, caused by misuse, abuse, accident, negligence, conditions of transportation or storage, or failure to follow instructions. The Company will not be responsible for any statements that are made or published, written or oral, that are inconsistent with this written warranty, or which are misleading or inconsistent with the facts as published in the literature or specifications by the Company.

Warranty Restriction

This warranty is invalid if the factory-applied serial number has been altered or removed from the product.

See your Owner's Manual for Troubleshooting your BioSmart® Therapeutic Ceramic Infrared In-Wall Heating System, or call our customer service department at 1-800-595-9605.
